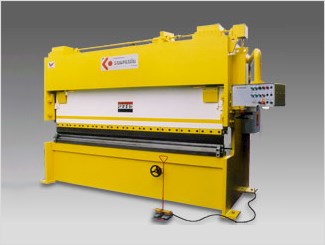

200 Series Press Brake

200 Series Press Brake

Product Info

Name of Product:
200 Series Press Brake
Location:
Selangor, Malaysia

Supplier Info

Company Name:
Litat Machinery Hardware Sdn Bhd
Reg. Number:
568101-D
Year Established:
1982
Business Type:
Importer

ELECTRO - HYDRAULIC

Technical Specification

Rated tonnage : 160 Ton
Distance between housings : 3200 mm
Working Length : 3100 mm
Table Width : 200 mm
C Gap : 380 mm
Stroke Length : 200 mm
Working Speed mm/sec. : Working Speed mm/sec.
Motor Capacity, 50Hz/415V, KW : 11 Kw
Approx. weight of machine : 10,000 Kg.
Overall Dimension ( L x W x Ht ) : 3500 mm x 1500 mm x 2800 mm

Standard Equipment

  • 1 Length Straight Top Tool
  • 1 Length Multi V Block
  • 2 pcs Lifting Chains
  • 3 pcs Front Work Rests
  • 3 pcs Std. Back-Gauges
  • 6 pcs Clamps for V Block
  • 1 Tool Box
  • Optional Equipment

Optional Equipment

  • Special Toolings, Gooseneck Top Tool etc.
  • 1 Axis NC Back-Gauge with PLC
