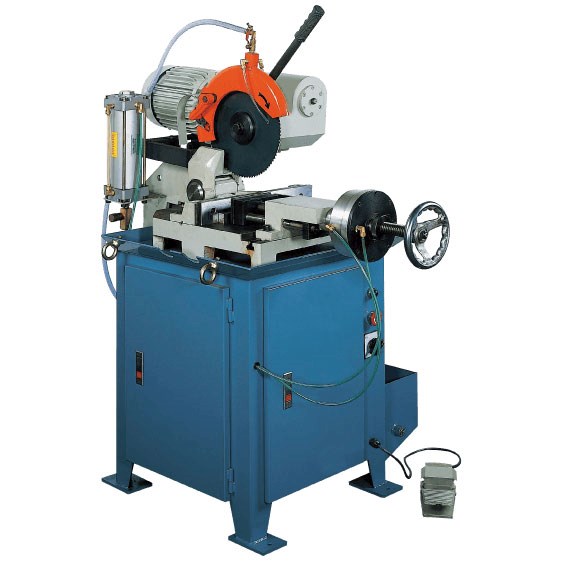

Circular Cold Saw FHC-300SA
Product Info
Name of Product:
Circular Cold Saw FHC-300SA
Location:
Selangor, Malaysia
Supplier Info
Company Name:
HIGHRISE INDUSTRIES SDN BHD
Business Type:
Distributor
- Automatic pneumatic single clamping.
- Automatic cutting feed.
- Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
- 2 Speeds.
- Movable guard. (optional)
MODEL FHC-300SA Main Drive Motor 3.0 HP/1.5 HP (2/4 Pole) 50/60 HZ Blade Speeds L Type:60HZ 35/70 RPM, 50HZ 58/29 RPM(std.)
H Type:60HZ 52/105 RPM, 50HZ 86/43 RPM(opt.)Head Swivel 90°/45° Clamping Vise Single Coolant Pump Motor 40W Saw Blade Size Diameter (mm) HSS 50-Ø300(1″-12″) Bore (mm) Ø32 Pin Holes (mm) Air Pressure (Consumption) 6 kg/cm²(120 ℓ/min) Hydraulic Pump Motor Operation Pressure Machine Dimensions (LxWxH) (mm) 1300x1150x1500 Packing Dimensions (LxWxH) (mm) 750x1060x1510 Packing Dimensions (LxWxH) (inch) 30″x48″x59″ Net Weight 300 kgs (660 lbs) Gross Weight 360 kgs (792 lbs)
