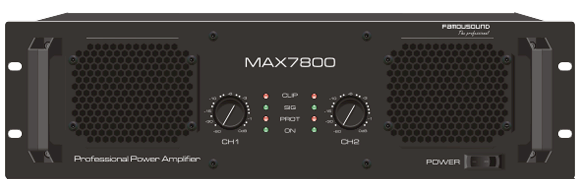

FAMOUSOUND PROFESSIONAL AMPLIFIER - SRAMFS-MAX7800

Famousound MAX series is a professional power amplifier with high quality and performance.

Features:

• Two channels input
• Two speaker output
• CLIP limiter
• Sensitivity selection switch: 0.775V, 1.0V, 1.4V(Only for MAX4300,MAX4800, MAX7200, MAX7800)
• MODE: BRIDGE mode, PARALLEL mode, STEREO mode
• 30Hz high-pass filter selection
• Grounding selection
• Air flow from front panel to the rear panel
• Soft start, DC, over-heat, overload, and short circuit protection functions.

Specifications:

8O stereo power: 1250WX2

4O stereo power: 1950WX2

2O stereo power: 2700WX2

8O bridge power: 3900W

4O bridge power: 5400W

Frequency Response: 20Hz-20KHz(±0.5dB)

THD+N: <0.05%

Slew Rate: 20V/us

Damping Factor: >200@8?

Dynamic Range: >90dB

S/N Rate: >80dB

Input Sensitivity: 0.775Vrms/1.0Vrms/1.4Vrms

Voltage Gain: 42.3dB

Input Impedance: Balance 20K/Unbalance 10K

Output Circuit Class: 3 Steps Class H

Hi-pass Filter: 30Hz@-3dB

Lo-pass Filter: 150Hz@-3dB

Protection: Clip/Limit, DC, Short Circuit, Switch On/Off Zero Impact, Soft Start and VHF

Cooling: Airflow from front panel to rear panel

Input Voltage/Frequency: ~220V±10%/50Hz

Packing Dimensions (mm): 620 (Length) X 585 (Width) X 210 (Height)

Net Weight: 38Kg
