Flowserve-D800 Series General Industry Pumps

Brand: Worthington

Covering a large flow and head range, the D800 is versatile and reliable. It is available in multiple configurations to suit site requirements and incorporates many proven features to reduce and facilitate maintenance.

• Applications:
  Auxiliary Services (power), OEM, HVAC, Construction
• Industries:
  General Industries, Power Generation

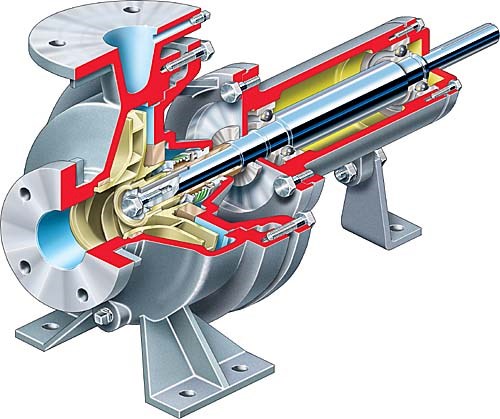

Precision Dry-Rabbet Fit with one-piece adapter and seal cover ensures positive alignment and reduces maintenance downtime.

Top Centerline Discharge Casing has bottom foot for added support; tap and plug holes for drain connections can also be provided.

Precision Cast High-Efficiency Closed Impeller is statically and hydraulically balanced to reduce power consumption.

Casing Nozzles conform to ANSI B16.1 specifications with a minimum 125 pound load rating. Threaded or flat-face flanged.

Complete Mechanical Seal Assembly is pre-set on the shaft sleeve to ease assembly and reduce maintenance downtime.

Renewable Wear Rings and Shaft Sleeves restore worn operating clearances and extend pump life at minimal cost.

Flexible Spacer Type Coupling allows pump internals to be removed without disconnecting motor leads or system piping.

Operating Parameters

• Flows to 340 m³/h (1500 gpm)
• Heads to 120 m (395 ft)
• Pressures to 15 bar (220 psi)
• Temperatures to 120°C (250°F)

D800 Series Pumps Bulletin

pss-10-6.1-e

Flowserve D800 Series Pumps – Frame Mounted and Close Coupled General Industry Pumps

D800 Frame Mounted And Close Coupled General Industry Pumps Bulletin

ps-10-6-ea4

Flowserve D800 Frame Mounted and Close Coupled General Industry Pumps (Models D814 and D824)
