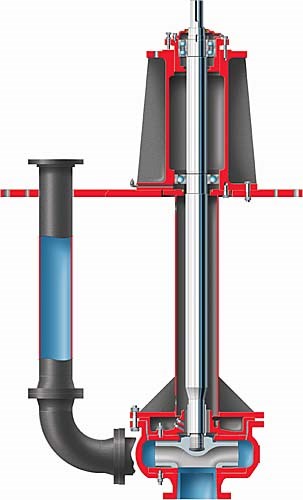

Flowserve- MJC Overhung, Vertical Cantilever, Rubber Lined Slurry Pump

Brand: Worthington

The type MJC hard metal slurry pump is a true stiff-shaft cantilever design, without bottom bearings and requiring no flushing water. The MJC is particularly well suited for applications in which flushing liquids are not available or cannot be tolerated.

• Applications:
  Sump Service, Slurries, Pulp and Paper, Wet Pit, Mining, Dry Pit, Mineral Processing
• Industries:
  Wastewater Collection and Treatment, Water Treatment, Slurry Transfer, Slurry Processing

Hard Metal Casing made from abrasion and corrosion resistant high chrome iron incorporates integrally cast straightening vanes in the suction nozzle to reduce pipe swirl and extend impeller life.

Closed Impeller includes pump-out vanes on front and rear shroud to reduce stuffing box pressure and suction recirculation as well as balance axial hydraulic loads.

Standard Packing Type Stuffing Box is protected by replaceable wear plate and is drilled and tapped for L5 and 2L3 lantern ring positions. Provided with full and low flow flush connections. Optional 316 SS, Alloy 20 or Alloy C-276 materials.

Features:

• Interchangeability of parts among R pump and M pump
• Concentric casing design
• Directly coupled or V-belt driven
• Options
  • Acid resistant stuffing box kits
  • Hard metal expeller
  • Mechanical seal housing
  • Open and recessed impellers
• Operating parameters
  • Flows to 225 m³/h (1000 gpm)
  • Heads to 30 m (100 ft)
  • Pressures to 10 bar (150 psi)
  • Temperatures to 110°C (225°F) depending on material
  • Solids from 2% to 70% by weight
  • Specific gravities from 1.0 to 2.7
  • Speeds to 1780 rpm

Type M Hard Metal Abrasive Slurry Pump Bulletin

ps-10-19-ea4

Flowserve Type M Hard Metal Abrasive Slurry Pump
