HDMI MATRIX SWITCH SUPPORT 4X2 - KVSWNL-HDMS402N

This 4X2 HDMI matrix switch with booster lets you switch between 4 HDMI sources and send any 2 of those inputs to 2 independent outputs. The unit is well built and it ships with a remote control. Compare it with other HDMI matrix switchers and you'll find their prices are hundreds more. The 4-in, 2-out HDMI matrix switch switches HDMI signals in any of 16 combinations. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs or any combination.

EXAMPLE: Watch a DVD in your home while someone else simultaneously watches high definition cable or satellite in the bedroom. Both the DVD player and the high definition receiver are in the same home.

Features:

• 4 HDMI inputs.
• 2 HDMI outputs.
• Supports HDMI Digital video & audio.
• Supports EDID pass-through.
• Supports up to 1080p, the highest resolution available with the PS4 and many new HDTV's.
• Supports DVI-D (Not DVI-A and maybe DVI-I) Single link Digital video with a DVI to HDMI adapter.
• Supports 1080p TV's at 24/30/60/100/120/200 Hz and above as well as Blu-rays at 24 FPS.
• Comprehensive HDCP 1.4a compliant support for best-in-class compatibility.
• Maximum compatibility with all types of HDMI and DVI devices.
• Plug & play installation.
• Black color.
• Input Video Signal: 1.2 volts p-p.
• Input DDC Signal: 5 volts p-p (TTL).
• Stackable: 1080p cascade above 6 layers.
• Supported video color format: Supports deep color up to 48-bit per pixel with full colorimetry, including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color.
• Compatible with all HDMI-equipped, HDCP-enabled HDTV devices.
• HDMI input connectors: 4.
• HDMI output connectors: 2.
• Compatible with all DVI, HDMI V1.1, V1.2, V1.3, and HDMI 1.4 signals.
• Supports 4K, 1080p/i, 720p/i, 480p/i, SXGA, UXGA, XGA, SVGA, and VGA resolutions.

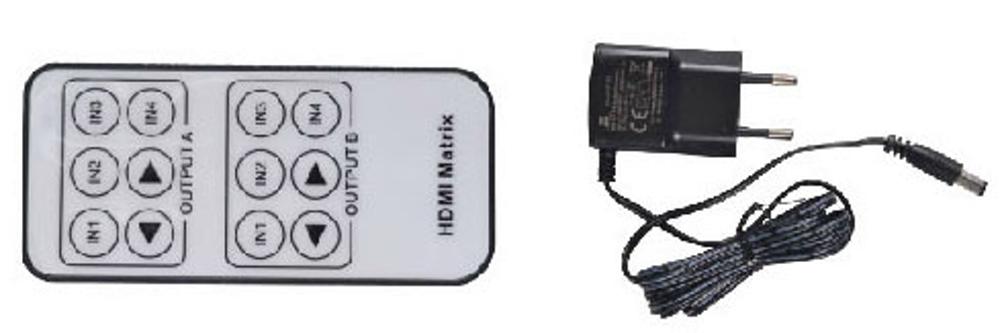

• Comes with a remote control for easy operation.

This HDMI Matrix Switch supports HDMI 1.4a including resolutions up to 1080p, 10.2Gbps data transfer, and deep color. It also supports audio transported digital audio formats of LPCM / Dolby-AC3 / DTS7.1 / DSD audio.

This HDMI Matrix Switch can also be used to switch DVI using the above DVI to HDMI cables or the above DVI to HDMI adapters. DVI does not transmit audio so you must wire it separately.

Specifications:

Product Dimension (W x D x H): 193 x 85 x 27 mm

Box Dimension (W x D x H): 250 x 186 x 56 mm

Product Weight: 0.51 kg

Box Weight: 0.66 kg
