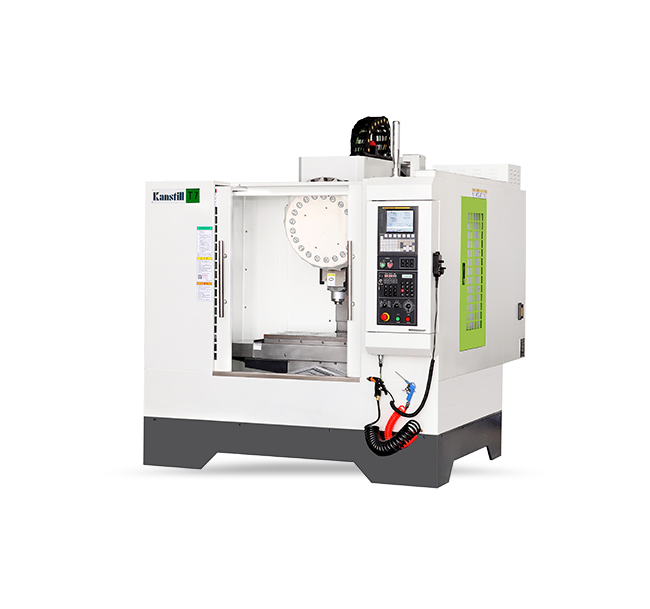

High Speed Drilling Machine

Mechanical characteristics:

* Sturdy machine structure, can withstand high G motion inertia.

* High-speed mute screw, quiet lines make less thermal deformation, high precision.

* high-speed spindle reaction fast, drilling tapping efficiency.

*3-axis 48 meters high-speed displacement, saving 50% non-processing time.

* Elevated column design, set aside to install the 4th and 5th axis space.

* Imported 3-axis shield to protect the screw line rail, improve machine service life.

Standard configuration:

* Fully enclosed protective cover

* Spindle motor 5.5KW

* BT30 Spindle Direct 20000rpm

* 21T type Arm tool magazine

* Ethernet、CF card and RS232 interface

* Centralized automatic feed lubrication system

* Spindle cooling system

* LED work light

* LED three-color warning light

* Separate electronic hand wheel

* Automatic slag flushing function

* Foundation horns and adjusting bolts

* Clean air gun

* Common toolbox

* Operation and maintenance manuals and control circuit data

* Spindle oil cooling circulation system.

Optional:

* 4th axis and control system

* Fast-moving 60m/min

* Oil mist collection and processing system.

* Outlet function of spindle center
