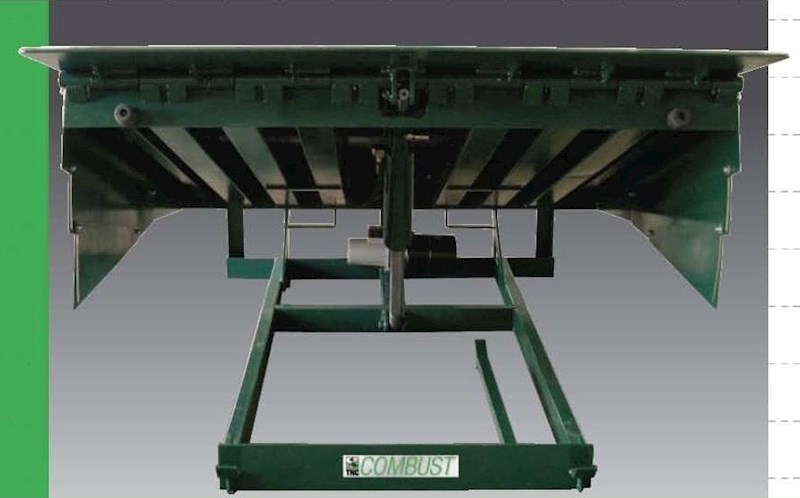

Hydraulic Dock Leveller

Capacity
High rated static capacity 35000 lbs. available with various platform sizes
And lip sizes to suite any modern warehouses or docking facilities

Ramp
Robustly constructed from 2 pieces 6mm Chequered plates reinforced with total 6 nos. of 4”x 6” & 2 nos of 4” x 3” boxed beam deck construction with a high rated static capacity of 35000 lbs.

Control panel
Working on 230 v control panel in accordance to EU standard & equipped with all necessary safety elements to protect the machine and its connections.

Power Pack
Highly sophisticated compact power pack with 1.0 HP motor, equipped with hydraulic pump with full easy pressure adjustable features & robust steel oil tank. This high quality European mini power pack series conform to European directives, machinery Directives 98/37/EC, EMC 89/336/EEC, BT 2006/95/EC, PED 27/23/EC & ATEX 94/9/EC.

Reinforced Lip
The front hinges are designed to maximized strength and minimized wear with built in grease nipples. The 16” long lip is constructed from 18mm thick high quality steel plates.

Toe Guards
The ramp is equipped with full height toe guards which prevent operator’s foot from entering between the ramp and the loading dock when dock leveler is above dock level.

Finishing
The standard surface finishing includes degreasing by the method of sand blasting, primed and two coats of final colour, Green RAL 6005.
