Kingsley Flame Arrestors

BRAND:KINGSLEY

• TYPE:END LINE/ IN LINE
• SIZE:15 NB TO 300 NB
• BODY MATERIAL:CAST AL LM6, CAST STEEL ASTM A 216 WCB/ A351 CF8/ A351 CF8M, HASTELLOY, PTFE LINED
• BANK ELEMENT:SS 304, SS 316, HASTELLOY-C
• GASKET:CAF, PTFE, FEP, METALLIC SPIRAL WOUND GRAPHITE
• BANK SHELL:CAST STEEL, SS 304, SS 316, HASTELLOY-C, A 351 CF8/CF8M
• NUT BOLTS:M.S ZINC PLATED, ASTM A 193 B7/B8, A 351 CF8/CF8M
• APPLICATION:TO PREVENT FLAME FROM PROPAGATING INSIDE THE STORAGE AND TRANSPORTATION SYSTEMS CARRYING FLAMMABLE LIQUID. THESE ARRESTERS ARE DESIGNED TO QUENCH THE FLAME AND PREVENT FIRE PENETRATION, EXPLOSION OR DETONATION IN THE SYSTEM

Features:

1. Designed, manufactured & tested in accordance with various National & International standards such as BS 7244, EN 12874, ISO 16852, API 2000, IS 11006.​

2. Kingsley Flame Arresters consist of a flame element made up of a corrugated metallic sheet tightly packed in the outer body providing a uniform Maximum Experimental Safe Gap for the effective protection against flame.

Application: Deflagaration and Detonation Type

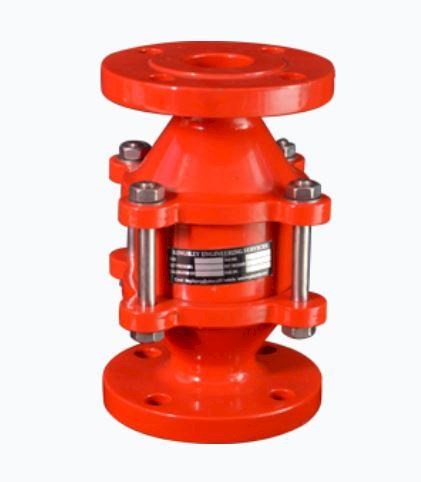

In Line Flame Arrestors ( First Image)

- Bi directional flame arrestors designed to provide minimum pressure loss and prevent flame propagation.

End of Line Arrestors ( Second Image)

- Installed at the end of pipeline or at the vent of storage tanks.
