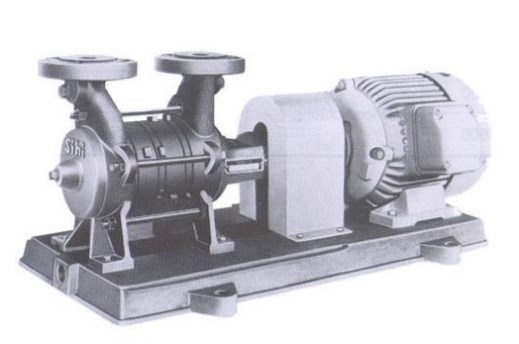

SIHI- Side Channel Pump Series ADH

The ADH pumps are self-priming side channel pumps capable of handling gas along with the medium and operates at a low noise level. These pumps have a segmental construction with open vane wheel impellers. The ADH series are running at high speed and have been designed with special regard to noiseless running. The program comprises 6 sizes.

Applications:
The ADH series are used to handle clear or turbid liquids, under high heads and without any abrasive particles, reliably and trouble-free. The number of hydraulic stages are as is customary in the boiler industry. The performance curve steepness admits a precise regulation of the pressure with a small change in capacity. The pumps are used in the boiler industry for condensate and boiler feed water handling, for washing, cleaningand spraying plants and for dry cleaning.

Technical Data:
Flow rate: up to 7.2 m³/h
Head: up to 250 m
Speed: max. 3000 rpm
Temperature: max. 120 °C
Casing pressure: up to 25 bar
Shaft seals: gland packing, mechanical seal
Material: grey cast iron
