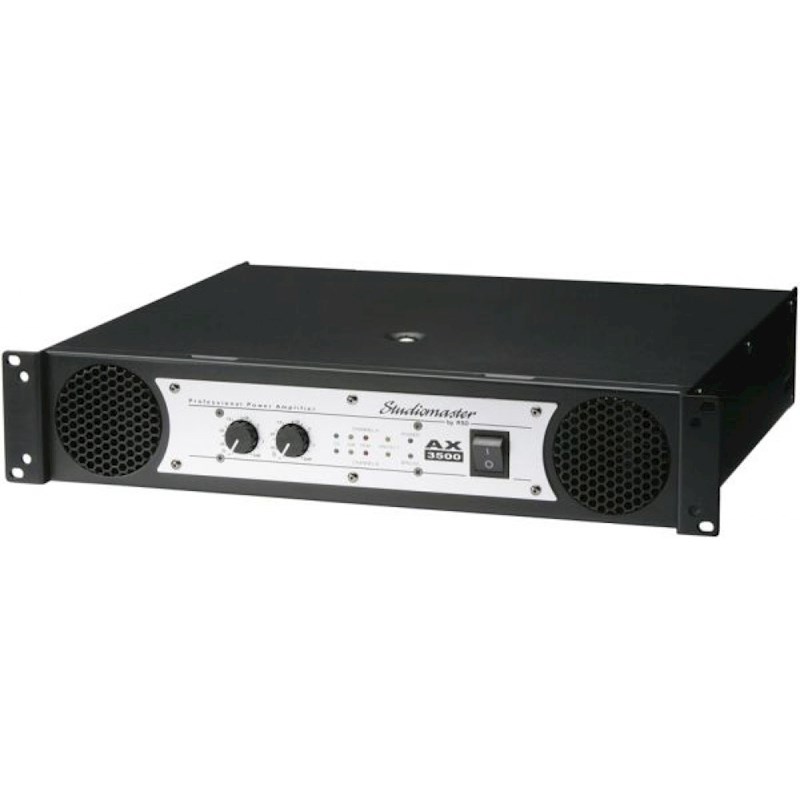

STUDIOMASTER PROFESSIONAL AMPLIFIER - SRAMSM-AX3500

1100watt into 4ohms per side. 2200w total. Solid bass, clear mids, and sparkling highs.

Solid bass, clear mids, and sparkling highs are trademarks of all Studiomaster amplifiers. The AX adds more power and flexibility to give your rig the sound it deserves. 1100watt into 4ohms per side. 2200w total.

Features:

• Compact up to 2900 watts in 2 rack spaces
• Save money on racks and flight cases
• 35Hz Hi-Pass filters which save power and help keep your bass tight. Twin variable speed fans when it hots up they'll keep things cool!
• Built-in 2 way crossovers so no need to buy an external unit.

Applications:

• PA rental/hire
• Clubs and bars
• Stage monitor systems
• Installations
• Mobile sound systems

Specifications:
Output Power (RMS watts per channel): Both Ch. 8 ohm: 710
                                                                     Both Ch. 4 ohm: 1100
                                                                     Both Ch. 2 ohm: 1450
                                                                     Bridged 8 ohm: 2200
                                                                     Bridged 4 ohm: 2900
Input Sensitivity Ref: Rated Power 4 ohms: 0dBu
                                                                           0.775V
Distortion (THD) 1kHz @ rated power (1 channel driven): 0.02%
Frequency Response 20Hz - 20kHz: +0/ -0/ 5dB
Signal to Noise Ratio (unweighted) Ref: Rated Power 4 ohm: 100dB
Input Filter: 35Hz 3rd order (18dB/oct)
Crossover: Selectable 100 / 150Hz, 3rd  order filter
Cooling: Continuously variable speed Twin Fans and back to front airflow
Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic and RF protection. All units are stable into mismatched or reactive loads
Output Circuit Type: AB+H(3), 3 step supply voltage
Power Requirements: 230V ±10% 50/60Hz
Power Consumption: 8.2A @ 230V 1/3 Power Pink Noise
Connection: Combination XLR and Jack socket, Male XLR link socket
Inputs: 4 pole industry standard sockets
Outputs : -
Size (W x H x D): 482mm (19") x 89mm(3.5") x 394mm(15.5") (When racked each unit occupies 2U) (Depth = rack mounting to rear rack ears)
Net Weight: 21.8kg(47.96lb)
Shipping: 26kg(57.2lb)
